Mac Studio (2025) MU973 – M3 Ultra Chip 28-Core CPU 60-Core GPU 96GB RAM 1T SSD Storage

Specificatio

Chip

• Apple M3 Ultra chip
• 28-core CPU with 10 performance cores and 4 efficiency cores
• 60-core GPU
• Hardware-accelerated ray tracing
• 32-core Neural Engine
• 410GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
• Video decode engine
• Two video encode engines
• Two ProRes encode and decode engines
• AV1 decode

Memory

• 96GB unified memory
• Configurable to 48GB, 64GB, or 128GB (with 16-core CPU and 40-core GPU)

Storage

• 1TB SSD
• Configurable to 2TB, 4TB, or 8TB

Display Support

• Simultaneously supports up to five displays:
• Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
• Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI
• Thunderbolt 5 digital video output supports native DisplayPort 2.1 output over USB-C
• HDMI display video output supports up to 8K resolution at 60Hz or 4K resolution at 240Hz; supports variable refresh rate (VRR), HDR, and multichannel audio

Audio

• Built-in speaker
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

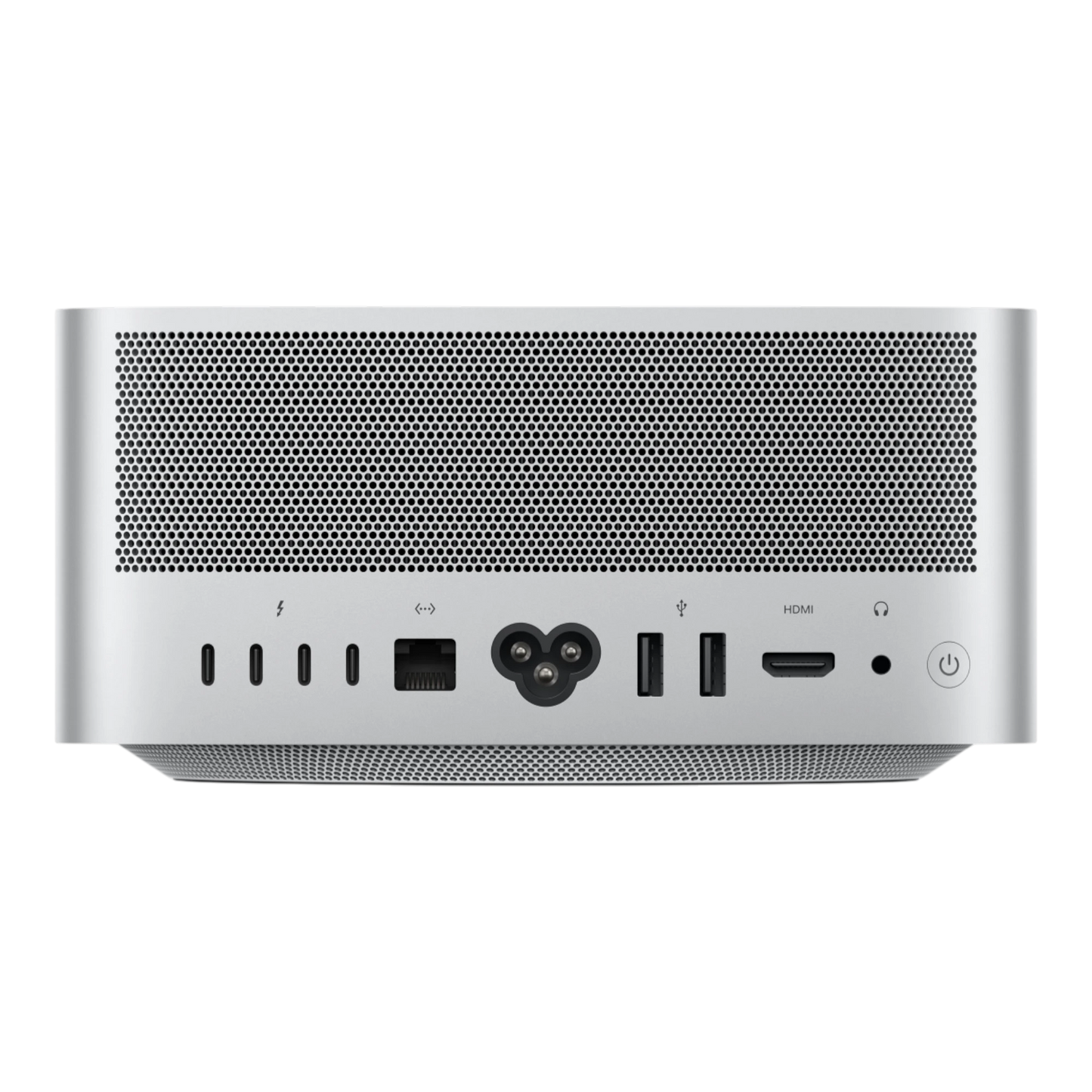

Connections and Expansion

• Four Thunderbolt 5 (USB-C) ports with support for:
• Thunderbolt 5 (up to 120Gb/s)
• USB 4 (up to 120Gb/s)
• USB 3 (up to 10Gb/s)
• DisplayPort 2.1
• Two USB 3 (USB-A) ports (up to 5Gb/s)
• HDMI 2.1 port
• 10Gb Ethernet
• 3.5 mm headphone jack

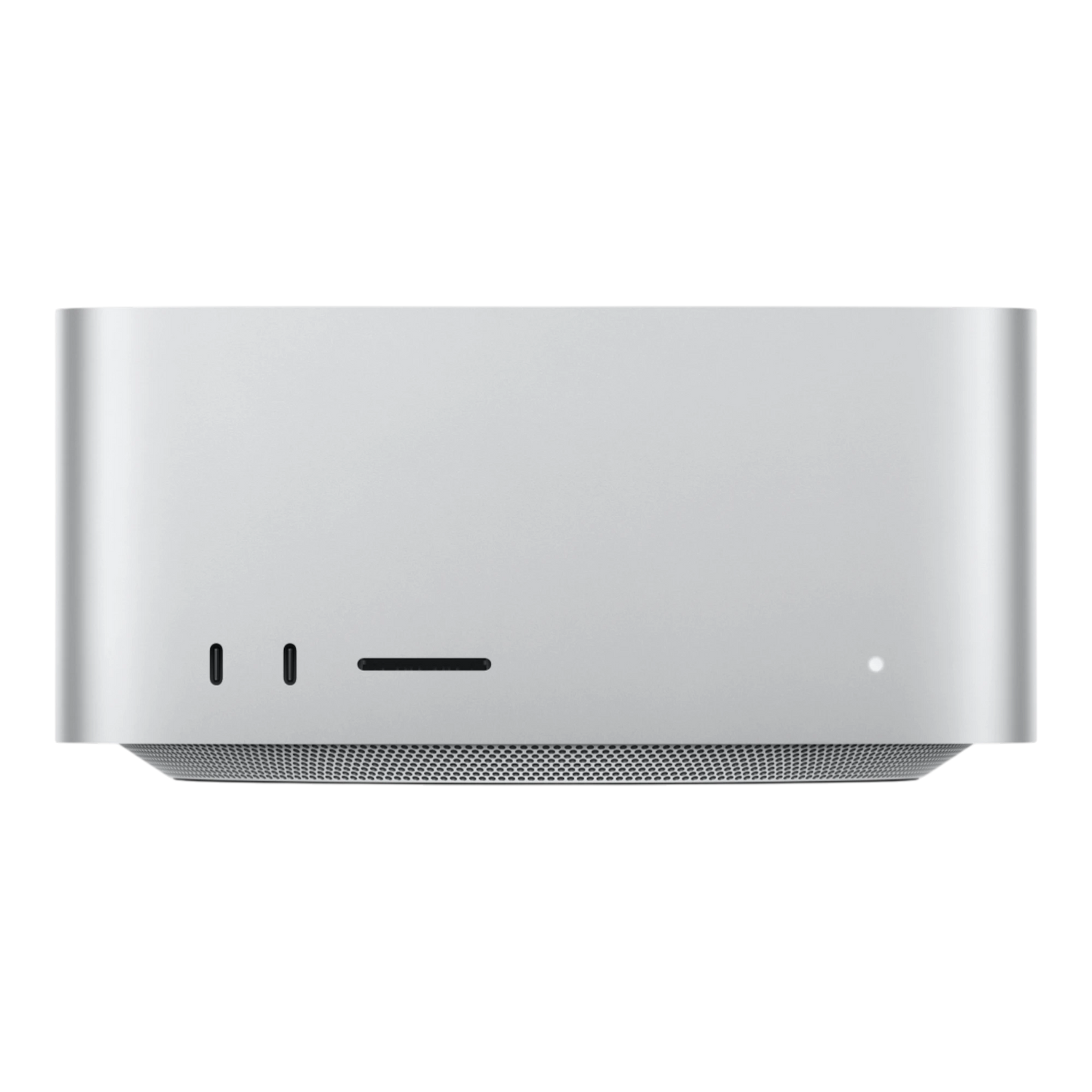

• Front: Two USB-C ports (up to 10Gb/s)
• Front: SDXC card slot (UHS-II)

Communications

• Wi-Fi 6E (802.11ax)
• Bluetooth 5.3
• 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)

Size and Weight

• Height: 3.7 inches (9.5 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 6.1 pounds (2.74 kg)

Electrical and Operating Requirements

• Line voltage: 100–240V AC
• Frequency: 50Hz to 60Hz, single phase
• Maximum continuous power: 480W
• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: –40° to 116° F (–40° to 47° C)
• Relative humidity: 5% to 95% noncondensing
• Operating altitude: tested up to 16,400 feet (5000 meters)

In the Box

• Mac Studio
• Power cord
